| Part Code | HRN001 |

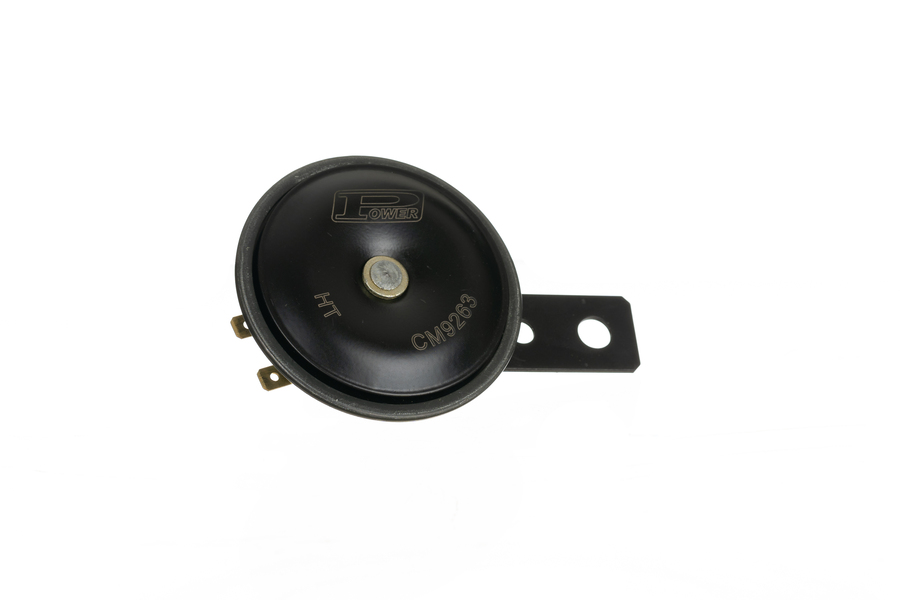

| Description | Horn 74 Dia |
| Application Brand | Universal |
| Application Vehicle | Universal Application |
| OEM Part Code | - |
| Rated Voltage | 12V |
| Tested Voltage | 13V |
| Current | 2.5A Max |
| Frequency | 440±20Hz / 370±20Hz |
| Sound Pressure Level | 105~115dB |
| Operating Voltage Range | 9V to 14.5V |
|
Sound Quality at 12 &13 V allowed |
No distorted sound |
| Insulation Resistance | >3MΩ |
| Endurance test |
5,00,000 cycle |
| Vibration test |
50~500Hz, 10G |
| Temperature test |
-20 to +80°C |
| Salt Spray test |
72 Hour |
| Water spray test | 48 Hour |
